Bag-In-Box Filling Machine

  • Our double-head semi-automatic bag in box filling machines for cheertainer is engineered for precise filling of liquid products into flexible cheertainer soft bags.
  • The bag in box filler machine integrates bag positioning, cap opening, filling, and capping in a fully automated sequence.
  • Designed with stainless steel construction and a high-accuracy weighing system, it ensures stable performance under continuous operation.
Inquiry Now

Construction Materials of Bag-in-Box Filling Equipment

  • Main Frame: SUS 304 stainless steel
  • Contact Parts: 316L stainless steel
  • Weighing Sensor: HBM high-precision load cell
  • Air Components: High-quality pneumatic cylinders and valves
  • Control System: Touch screen HMI + industrial PLC
  • Pipeline: Food-grade stainless steel

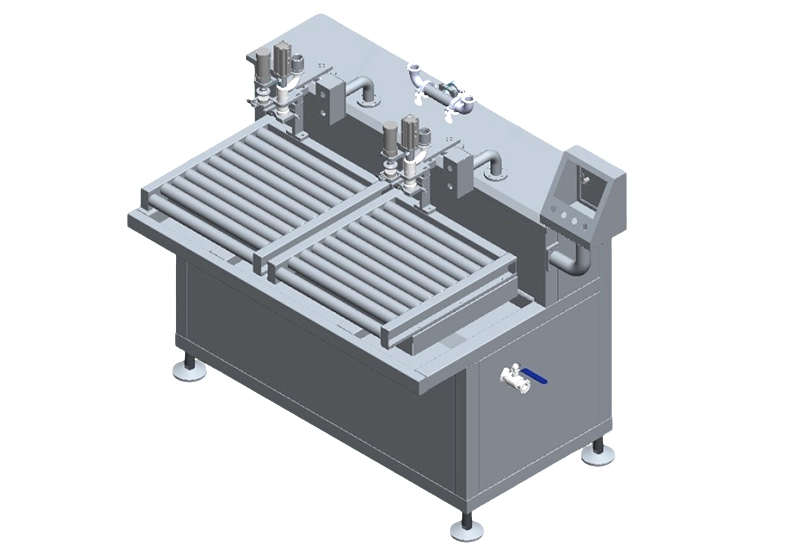

 bag-in-box filling machines

Performance Parameters
Filling Heads 2
Output ≤ 100 bags/hour
Filling Accuracy Weight-sensor controlled, optimised for low-viscosity and medium-viscosity liquids
Power Requirement AC220V, 50Hz
Rated Power 1 kW
Air Supply 0.5–0.6 MPa clean compressed air
Operating Temperature 5°C–35°C
Relative Humidity ≤ 85%
Noise Level ≤ 75 dB

Applications of Semi-Automatic Bag-in-Box Filling Machines

bag-in-box-filling-equipment bag-in-box-equipment bag-in-box-filling-machine
Food and beverage Dairy and condiments Detergents and cleaning liquids
automatic-bag-in-box-filling-machine bag-in-box-filling-machines custom-designed-bag-in-box-filling-machines
Chemical solutions Water and household liquids Industrial and agricultural liquids



Mechanical Properties of Automatic Bag-in-box Filling Machine

  • Smooth mechanical movement without dangerous vibration
  • Stable filling volume control
  • Adaptable to multiple Cheertainer bag sizes
  • Designed for long-term continuous production
 semi-automatic-bag-in-box-filling-machines

bag-in-box-machine

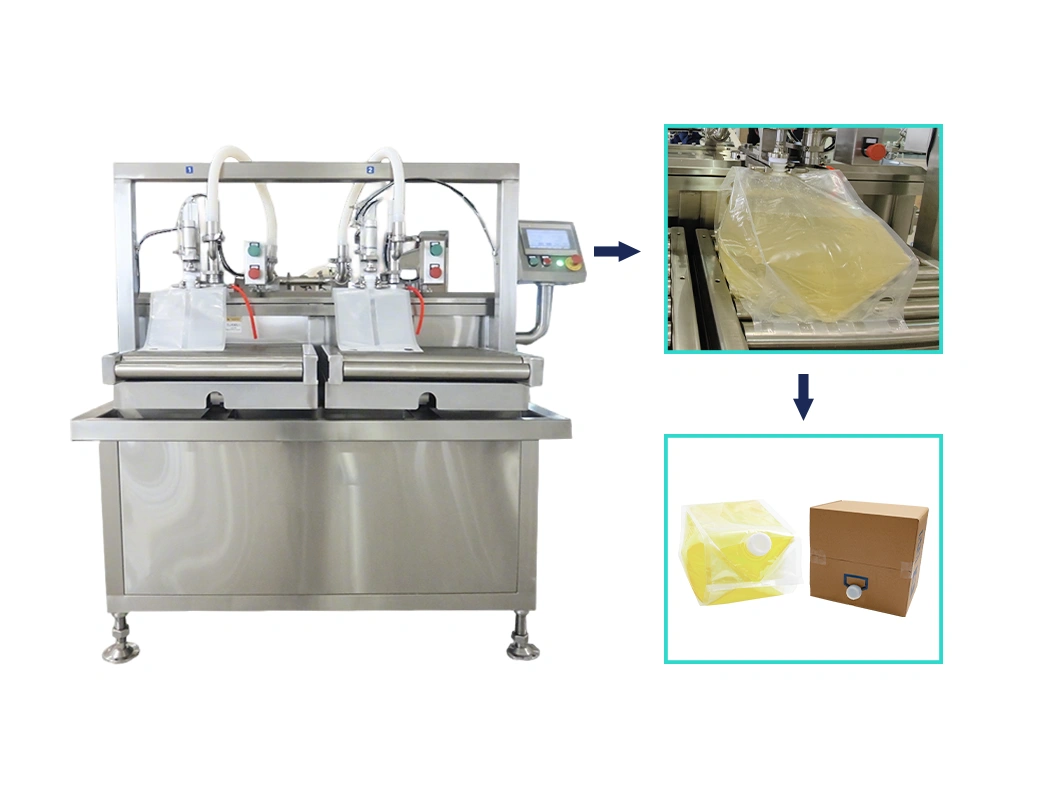

Working Process of Bag-in-box Filling Machines

  • Bag Positioning: Soft bag placed on the roller weighing table
  • Cap Opening: Pneumatic cylinder lifts and positions the cap
  • Filling: The Filling pump and valve deliver product to the filling head
  • Weigh Control: Load cell monitors flow for precise volume
  • Capping: Cylinder presses the cap tightly into the bag neck
  • Bag Removal: The Bag slides down the roller platform for packing

Human–Machine Interface (HMI)

  • Real-time operation display
  • Manual and automatic modes
  • Filling volume presets
  • Delay adjustments (cap opening, filling time, cap pressing)
  • Weighing calibration menu
  • I/O signal monitoring (for troubleshooting)

Safety Systems of Custom-designed Bag-in-box Filling Machines

  • Emergency stop
  • Overload protection
  • Pneumatic safety lock
  • Interlock on key components
  • Operator protection zones
bag in box packaging machine market

The bag-in-box filling machine’s Maintenance Requirements

  • Clean all 316L contact parts at the end of each shift.
  • Avoid using high-pressure water jets near electrical components.
  • Replace air filters regularly
  • Use dry compressed air to clean electrical cabinets
  • Inspect O-rings and seals quarterly

Review Your Product’s Features
Before Choosing a Semi-Automatic Bag-In-Box Filler

  • Low-viscosity liquids (water-based beverages, cleaning agents)
  • Medium-viscosity liquids (oils, detergents, sauces)
  • Sensitive liquids that require hygienic contact surfaces

Suitable filling equipment for the Cheertainer bag-in-box should use 316L stainless steel for all product-contact surfaces to maintain hygiene and prevent corrosion.

automatic-bag-in-box-filling-machines bag-in-box-filling-machine-for-sale bag-in-box-machine-manufacturing
Low-viscosity liquids Medium-viscosity liquids High-viscosity liquids

OEM Services During Our Gag-in-box Machine Manufacturing



  • Branding and labelling
  • Custom machine dimensions
  • Customised filling heads and spouts
  • Seamless integration with existing production lines
 bag-in-box-making-machine aseptic-bag-in-box-filling-machine

ODM Services



  • New machine development
  • Customised structural design
  • Special functions for unique liquid products
  • Full engineering support
 aseptic-bag-in-box-machine bag-in-a-box-filling-machine

Why Work With Us？

bag-in-box-filler-machine bag-in-box-filling-machine-price bag-in-box-liquid-filling-machine filling-machines-for-bag-in-box-containers
Experienced engineering team Food-grade manufacturing capability Reliable quality control systems Long-term after-sales support

Our Experience with Bag-in-Box Filling System

When choosing a bag-in-box filling equipment for Cheertainer, select a manufacturer as Liqpack with experience in:

  • Bag-in-box systems
  • Liquid processing equipment
  • OEM/ODM customisation capability
  • This ensures your machine fits your exact production needs.

Packing and Loading of the filling machines.

Bag In Box Transportaion bag-in-box-filling-machine-2 bag-in-box-filling-machines-2
